GT1
- 5.2L SuperCharged Ford Performance v8
- Ricardo 6-Speed Manual
Starting at $1,200,000
GT1 Technical Specifications
Raw Power and Race Proven Performance
Power is a construct of precision components and race engineering. However, it must embody endurance and reliability as well. Ford Performance Racing supplies the heart of the GT1. From its race heritage at LeMans in the 1960s to the modern day GT, the 5.2 Liter Supercharged Aluminum Block V8 produces a staggering 1,200 peak HP and 900 Lb-ft of torque. Connected to a Ricardo 6-Speed manual transmission as ll original Ford GTs were and a stress tested Limited Slip differential on our home track at Circuit of the Americas.
Drivetrain
- Engine- Supercharged 5.2 Liter V8 co-developed with Ford Performance Racing and Magnuson Superchargers
- Maximum Horspower- 1,200 horspeower @ 7,800 RPM
- Maximum Torque- 900 lb-ft @ 4,500 RPM
- Transmission- Ricardo manual 6-speed
- Drive Configuration- Mid Engine, rear-wheel drive, Limited Slip Differential
- Exhaust- Graham Rahal Performance Stainless Steel and Titanium Performance Exhaust
- Fuel System- Stainless Steel custom race bred high output fuel system
- Cooling System-Twin high output radiator system
- Lubrication System-Dailey Engineering Dry Sump
Chassis
- Front Suspension Type- Double Wishbone with adjustable anti dive KW Engineering coil over shocks
- Rear Suspension Type- Double Wishbone with Adjustable Anti Squat KW Engineering Coil Over Shocks
- Chassis Lift- 2" Front and Rear Electronic chassis lift for low obstacle clearance
- Steering Type-Electro hydraulic assist rack and pinion
- Chassis- Ford GT Aluminum Space Frame Monocoque with Aluminum frame carriers for engine/ suspension
- Body- Hand Laid Carbon Fiber 7-4-7 wide pattern
- Front Brakes- 6 Piston Front 394 mm CCM-R Brembo
- Rear Brakes- 6 Piston Front 360 mm CCM-R Brembo
- Vehicle Curb Weight- 2,940 lbs

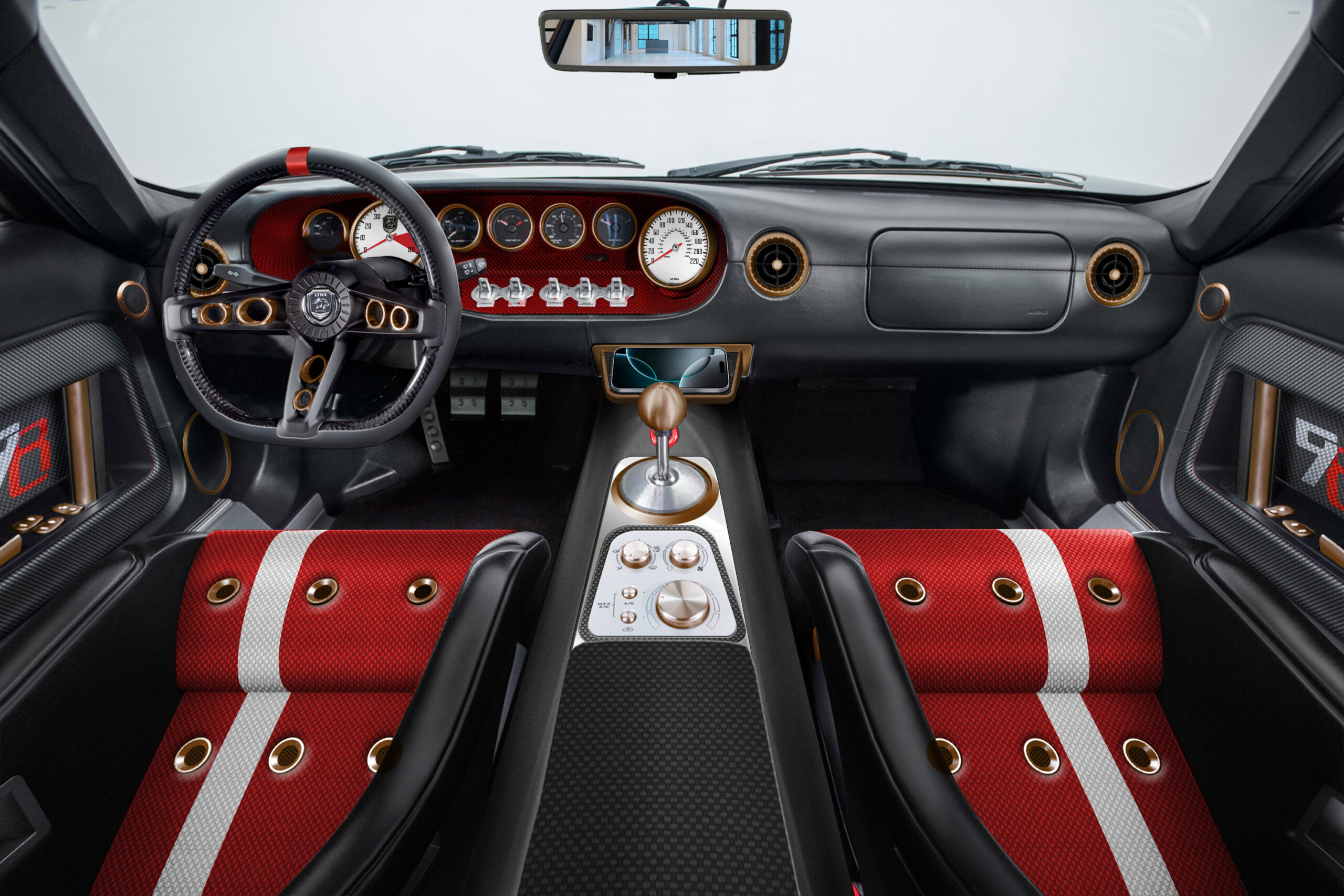

Interior
- Steering Wheel- Bespoke designed GT1 Steering wheel in either round or D-shape with carbon fiber, perforated leather or solid leather covering
- Seating material- Leather, alcantara, woven leather, carbon fiber and billet aluminum
- Instrument Cluster- Gauge rings to match other billet elements in the interior with batch matched anodizing, gauge faces in color choice along with dials, lettering font and back lighting
- Headliner material- Leather or alcantara
- audio system- Bluetooth receiver mated to a 12 speaker focal reference audio system with 12" center subwoofer
- Shift knob- billet aluminum batch anodized matched to there interior billet finishes
- Interior carbon fiber components- dash, center console, side sill plates, rear finishing panels, door panel trim
- Roll cage- Can be installed with leather wrapped areas for ingress and egress

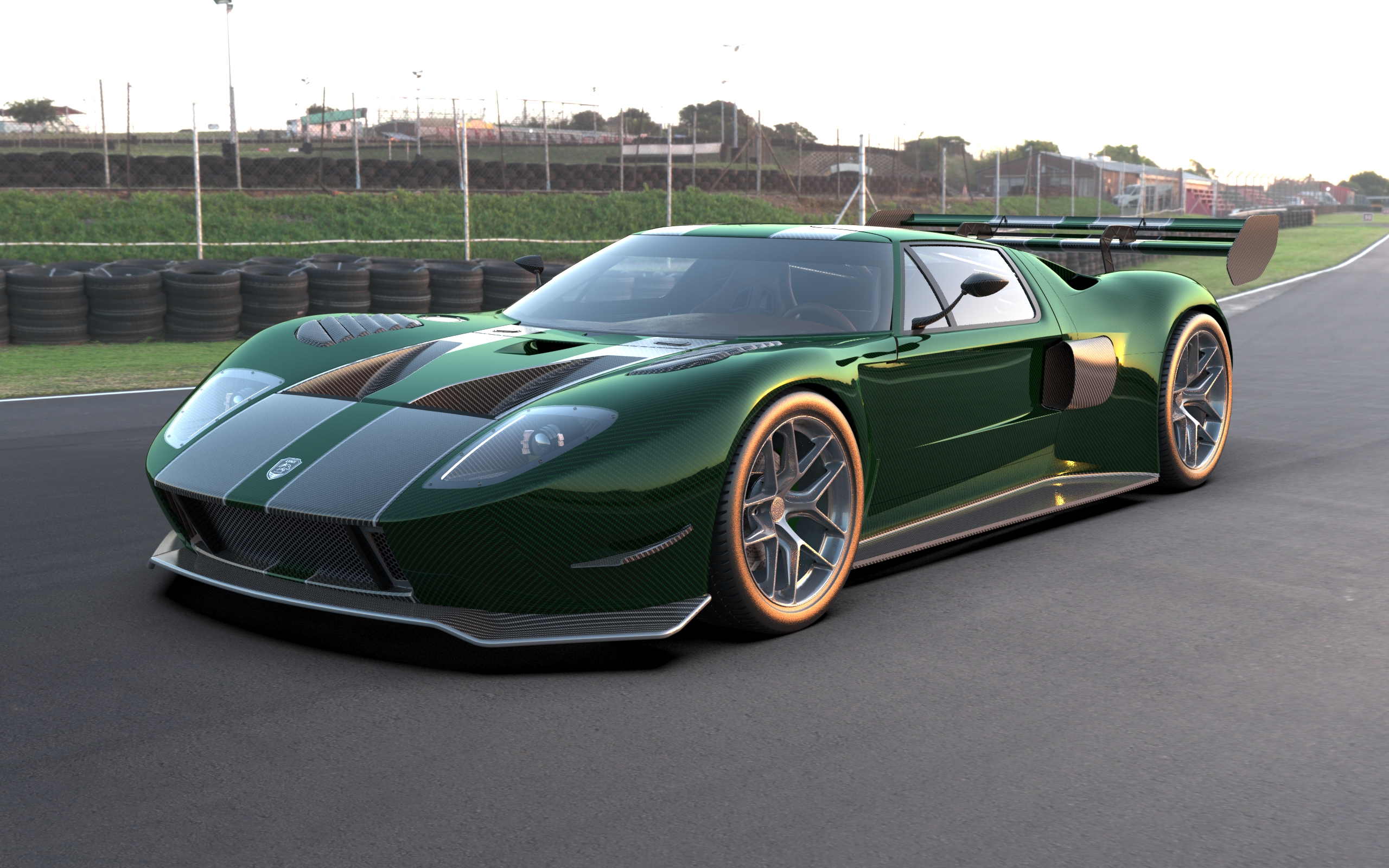

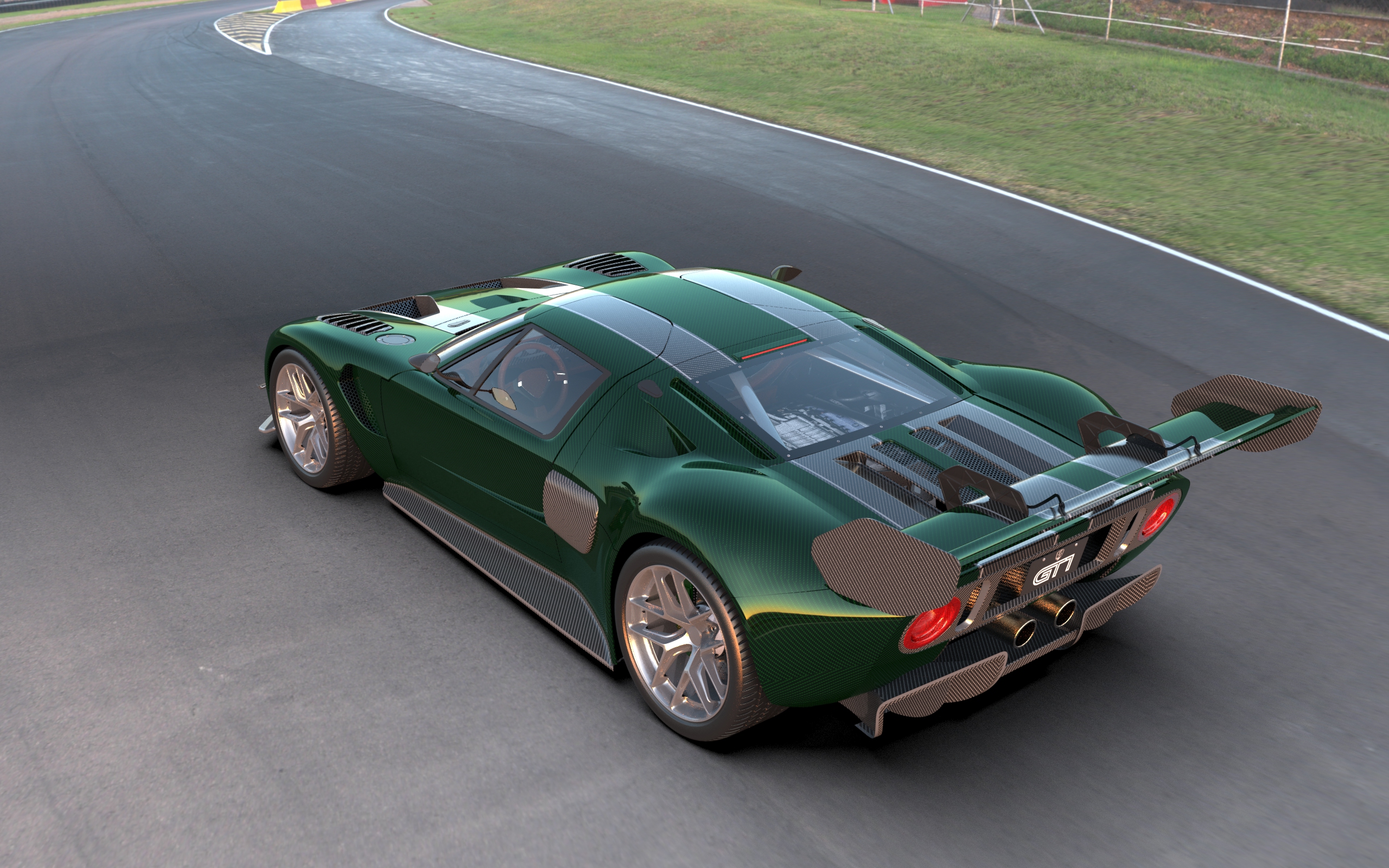

Exterior
-
- GULF EFFECT
-

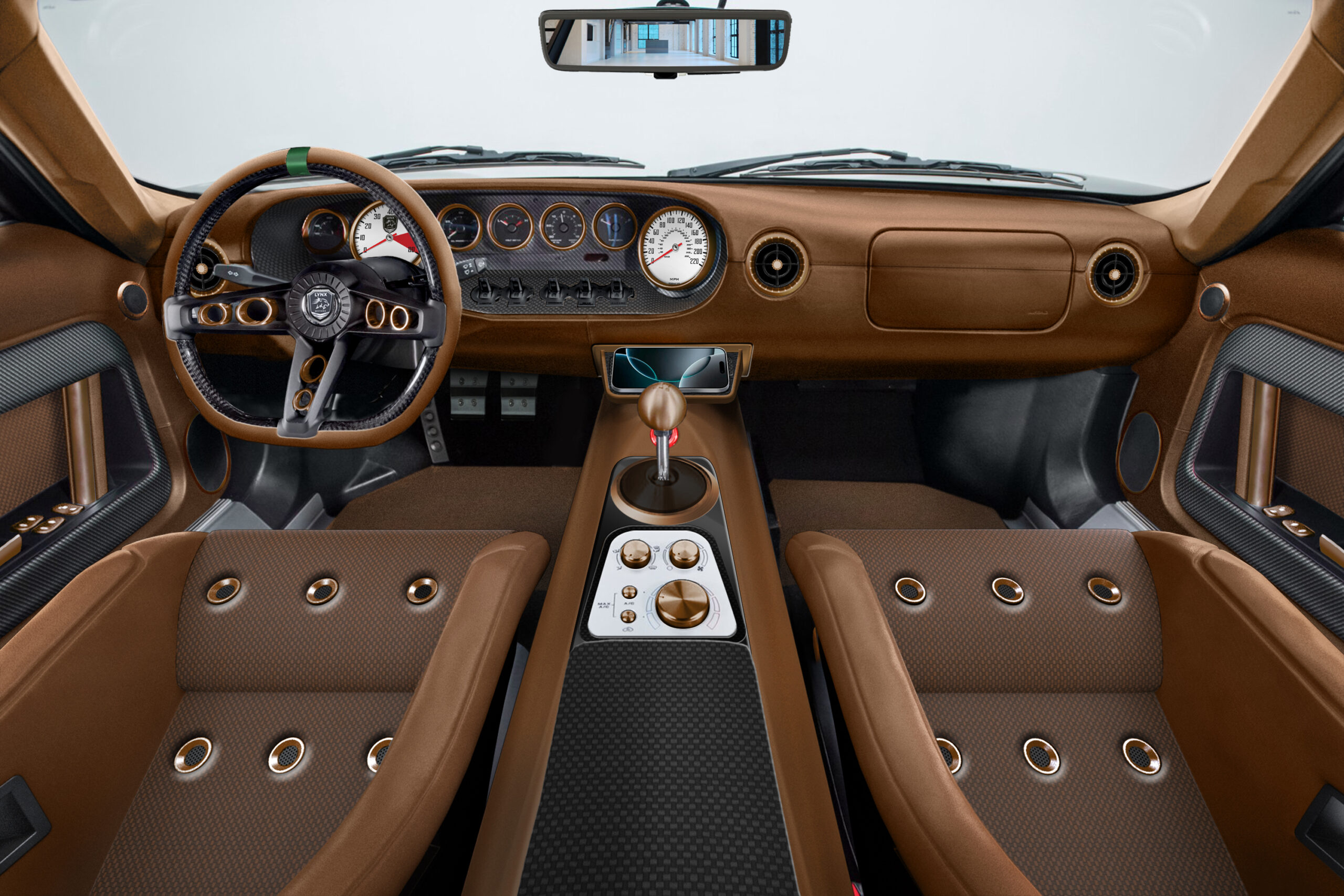

- GT1 Dash detail from passenger side
-
- OLYMPUS DIGITAL CAMERA
-
- OLYMPUS DIGITAL CAMERA
-
- EAU ROUGE
-
- OLYMPUS DIGITAL CAMERA
-
- OLYMPUS DIGITAL CAMERA
